Zemgo FPC-8455 Smart Mobile WiFi Controller for Access Control
Controlador Wi-Fi ZEM-CWI Dimensiones

Zemgo FPC-8455 Smart Mobile WiFi Controller for Access Control with Android + Apple App, Web Browser + Smartphone Remote Viewing, Outswinging Door 600lbs Magnetic Lock, Indoor Keypad/RFID Reader

Kit Includes:

  • (1) VIS-ML600LED: 600lbs Indoor Electric magnetic with LED Sensor
  • (1) ZEM-CWI: 2.4 GHZ Wi-Fi Smart Door Controller for Access control ZEM-CWI
  • (1) VISCP200: 12 Volt 2Amp Power Supply Transformer, UL Listed
  • (1) VIS-3002: Access Control Indoor Only Digital Touch Keypad + Reader Standalone + Wiegand 26 Standard Design No Software EM + Mifare Cards Compatible 2000 Users
  • (1) VIS-8006: External hard-wire Door Bell for VIS-3000 Keypad/Reader Access Control
  • (1) VIS-7013: Indoor Stainless Steel No Touch Request to Exit Button with Time Delay Standard Size with LED Light NC COM and NO Outputs
  • (10) VS-VIS-APROXCARD/26: Access Control Proximity contactless Smart Entry card 1.8mm thick 26 bit 125khz
  • (10) VS-VIS-KEYTAG: Access Control Proximity contactless Smart Entry Keyfob 26 bit 125khz

$248.61

Buy Now
Comprar Ahora
SKU: FPC-8455 Category:
Share Pinterest

FREE SHIPPING within the USA including Puerto Rico, Hawaii and Alaska,

Local pickup is not available. Please choose a shipping option for delivery.

NOTE: Order Before 3:00pm EST on a week day and your order will be shipped out the same day.

ENVÍO GRATUITO dentro de EE.UU., incluidos Puerto Rico, Hawai y Alaska,

Recogida local no está disponible. Por favor, elija una opción de envío para la entrega.

NOTA: Haga su pedido antes de las 3:00pm EST de un día laborable y se le enviará el mismo día.

Mobile App

Mobile App

Web Access

Web Access

Real Time Notifications

Real Time Notifications

Add Unlimited Doors

Add Unlimited Doors

3 Years Warranty

3 Years Warranty

Up to 164 feet from Router

Up to 164 feet from Router

DIY - Plug and Play

DIY - Plug and Play

No Monthly Fees

No Monthly Fees

No Contracts and No-Hassle

No Contracts and No-Hassle

Low Power Consumption

Low Power Consumption




The FPC-8455 kit contains an electromagnetic lock, indoor keypad/reader, exit button, proximity cards, proximity key tags, power supply, and a ZEM-CWI. This simple DIY kit was designed for a quick door access control solution that you can manage via our mobile application, OpenSee (brought to you by Zemgo). Please verify that this kit will comply with your local fire code. Internet connection is required for this to be installed correctly. We are not responsible for the improper install or handling of this product.

A keypad/reader is included in this kit. For the keypad/reader to work with the ZEMGO CWI unit as it is intended to, the keypad must be in the wiegand setting; which can be done in programming mode on the keypad. Keep in mind that when wired and programmed properly, the keypad will fully integrate with the OPENSEE application. As an example, you will program the pin code, proximity card, or keytag directly into the OPENSEE application. Once you have programmed one of the three entry methods, you will receive live notifications on your mobile device indicating which user has opened the door.

Zemgo Smart Systems specializes in Wi-Fi smart door controller. Our engineers specialize in software, hardware, and graphics which enables us to meet your various needs. We’ve designed a revolutionary Wi-Fi smart door controller, not only stunning and incredibly reliable, but also completely changes the definition of what a smart door controller is. Zemgo Smart Systems dedicates itself to improve the human living quality and daily comfortable lifestyle in access control. Zemgo’s every step, from component selection and production to value logistics, is tested to abide by and uphold the most stringent international standards. From Wi-Fi, app-enabled access control and door automation systems, to door security, Zemgo solutions cater to today’s business owners and homeowners’ mobile and environment-conscious lifestyles. Our goal is to ensure that you have complete access control, comfort and get real time notifications of your access control system in your smartphone or computer from anywhere in the world. SYSTEM PRIVACY: SAFE, SECURE AND ENCRYPTED AES128

The Wi-Fi Smart controller ZEM-CWI is designed for electric locking devices (Automatic door Openers, Maglocks, Electric strikes, drop bolts, ETC) that can be installed in gates, main doors, side doors and another type of doors, plus other electrical equipment that will be controlled remotely via Wi-Fi that you can see it from anywhere in the world as long as you have internet access on your computer, smartphone or tablet. ZEM-CWI can be controlled via our OpenSEE app. The app can be downloaded from the Apple app store and Google Play Store. ZEM-CWI is compatible with all other access control products/brands.

Specifications

Magnetic Door Lock for Access Control

The VISML600LED magnetic door lock provides a strong sense of security with its outstanding holding force and significant features. The maglock is installed beneath the top of the door frame to make sure that the door remains closed and locked. With the VISML600LED, you have up to 600lbs of force protecting the door, which means it would take above 600lbs of force to open the door if someone wanted to force entry into the door. The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is locked. When the light is green, the maglock is unlocked.

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 500mA ; 24V / 250mA (±5%)>
  • Holding Force: Up to 600 lbs (272 kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Weight (Magnet): 1.1 kg (±1%)
  • Dimensions: Magnet – (L)250x(W)42x(T)25 mm Armature – (L)180x(W)38x(T)11 mm
  • Green/Red LED Indication for EM Lock Status

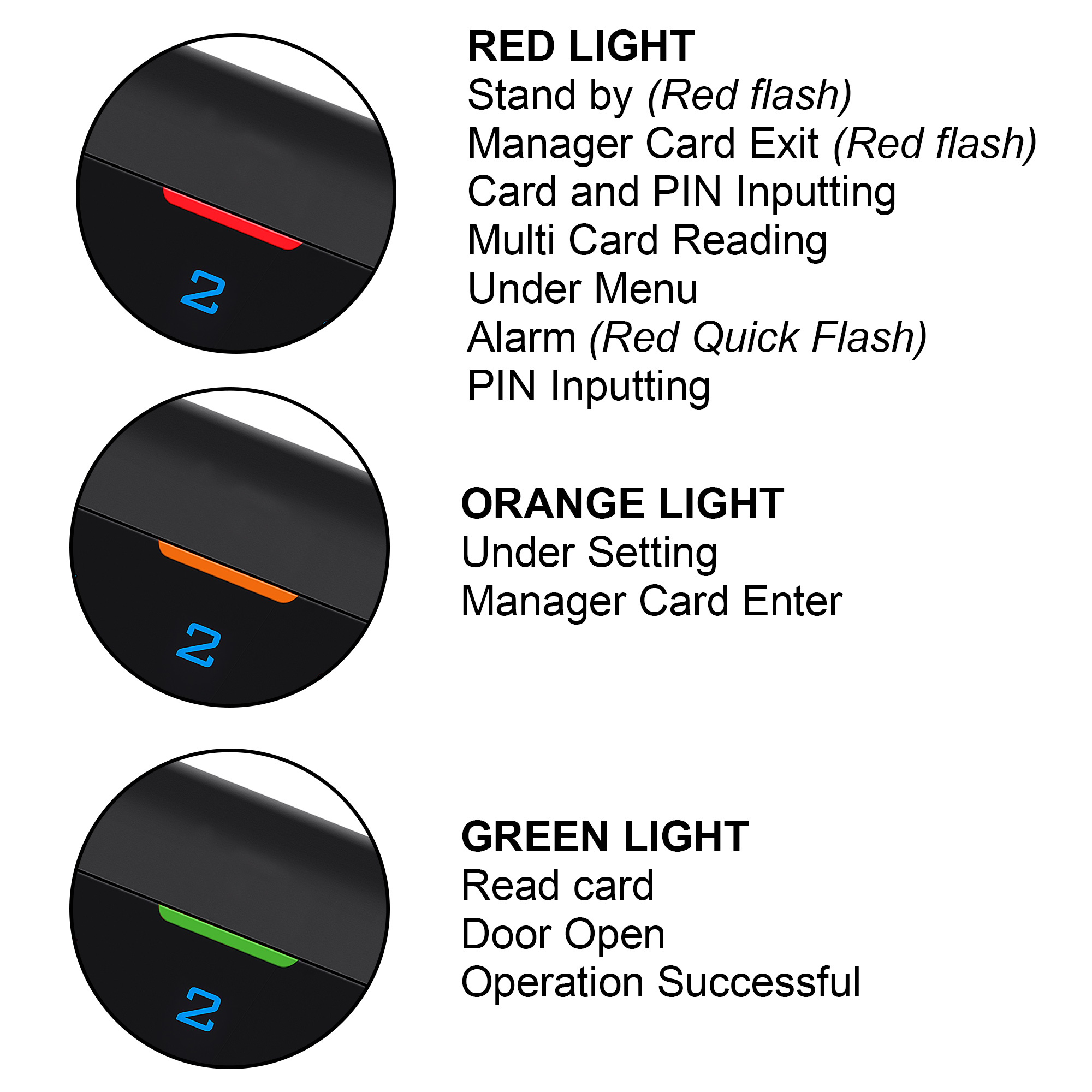

Indoor Keypad with RFID Reader

A diverse keypad in its functionality, the VIS-3002 provides access through three different options. You can enter a pin code onto the keypad, use a proximity card, or proximity key tag. If you use this as a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card, key tag, or mobile phone.

  • Ultra-low power consumption: Standby current is less than 30mA.
  • Input & Output: Wiegand26.
  • Searching Time: Less than 0.1s after reading card.
  • Backlight Keypad: Easy to operate at night.
  • Doorbell interface: Support external wired doorbell.
  • Independent codes: Use codes without related card.
  • Access ways: Card, code, card+code.
  • Anti-tamper alarm: Alarm is activated after tear down illegally.
  • Delete Users by card NO.: Delete card NO. by keypad to eliminate security risk completely.

Exit Button

The no touch request to exit button (VIS-7013) is for indoor use. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0-25 seconds. The LED light on the button helps you recognize when it is on standby (red), sensation (green), or off. It has an adjustable range of 4-10 cm so you can pick your distance of detection.

  • Contact Rating: 12-24V, 3A, Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 – 5.90in.), Adjustable
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminum Alloy (CNC)
  • Mechanical Life: 100.000 tests
  • Weight: 0.105kg
  • Dimensions: 115L × 70W × 25H mm – 4.52L x 2.75W x 0.98H in.

Downloads

Datasheet

Quick Start Guide

User Manual
